[ UNMANNED AIRCRAFT / 01 ]
YARÓ
150.
FAST. SILENT. LONG-RANGE.

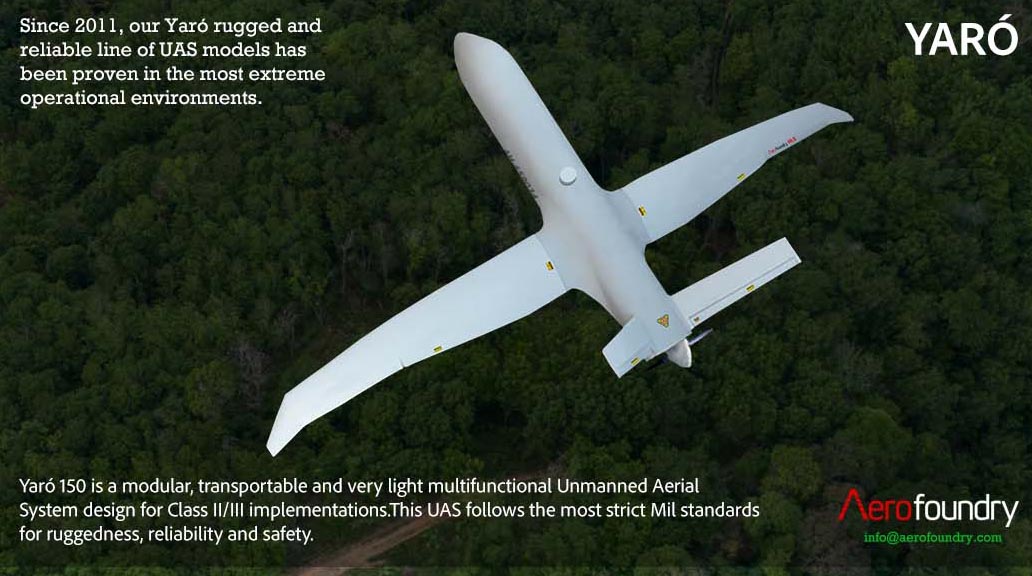

A light tactical aircraft belonging to the Yaró family of UAV, designed (since 2011) for persistent ISR/ISTAR, and multi-sensor remote sensing missions.
[ PLATFORM ]
YARÓ
SAQR (نسر).
Yaró 150 HLS is a light tactical (Class II) 150kg MTOW version, designed for the US market, tightly following NATO STANAG 4703/AEP-83 standards; and Yaró 150 LE is the non-restricted exports version, configured for international sales. This Tier I very light airframe is designed to be at the top of its Class in payload capacity, cruise and maximum speed, and endurance.
Both versions are designed for long-endurance, day and night, all-weather ISR/ISTAR, ELINT, and advance multi-sensor remote sensing applications. Yaró 150 has two underwing hardpoints for pods or pylons.
The main task of this AI-driven aircraft configuration is to create an Information Dominance (ID) ‘bubble’. Yaró has a tropicalized version for hot hyper arid deserts called Saqr (نسر).
Buuma is very light, sturdy, and designed for short takeoffs, and bumpy landings, aiming at maximizing payload capacity. It is carried in a trailer, and quickly assembled in the field.
[ 01 / HIGHLIGHTS ]
OPERATIONAL
HIGHLIGHTS.
- Mid-altitude (>4000m flight height).
- Long-range (220km).
- Forward Air Controller (FAC).
- Close Air Support (CAS).
- Tactical Air Coordinator (TAC), depending on the strategic deployment.
[ 02 / SYSTEMS ]
CORE
SPECIFICATIONS.
- Very long-range AF-380 gimbal customized for Yaró, carrying an EO/IR gyro camera setup, with a cooled MWIR thermal camera with continuous zoom, auto-focusing, NUC, polarity conversion, image enhancement, and integrated video sensor fusion.
- High-Performance AI empowered platform: Integrating a high-performance computing module with expandable capabilities for video compression, multi-target recognition and tracking, image stitching, and support for landscape registration and visual navigation.
- Enhanced Imaging Features: Includes infrared enhancement, infrared pseudo-color, and visible light enhancement for superior image quality.
- Aerial Survey Mode with Platform Compensation for platform roll disturbances to maintain a vertical view of the ground.
- Integrated Inertial Navigation: for high-precision attitude and position data, with the ability to use onboard inertial navigation as a backup and switch between internal and onboard data sources.
- The laser ranging detection (LRF) is capable of geopointing, target locking, and scene locking with <5m precision.
- And the Laser Pointer (LP) has a range of 20-23km, with a beam divergence of ≤ 0.2 mrad, and a repetition rate of 5Hz.
- The advanced 150 or 250km datalink alternatives include a set of sophisticated anti jamming features.
- Alternatively, it can be suited with a IMS-350 Iridium Certus Satcom.
[ 03 / KINETIC ]
KINETIC
ASSISTING
CAPABILITIES.
- Battlefield Reconnaissance and Dynamic Target Surveillance: Enables real-time battlefield intelligence and target imagery updates, swiftly detecting, identifying, and tracking targets, with direct transmission of reconnaissance images to intelligence systems via digital networks.
- Laser Illumination and Guidance: Provides laser illumination for selected targets, guiding laser-guided missiles or bombs for precise strikes.
- Strike Effect Reconnaissance and Damage Assessment: Captures real-time imagery of target damage effects, transmitting strike assessment data directly to intelligence systems via digital networks.
- Active and Passive Positioning: Supports both active and passive positioning with built-in local elevation data for high-precision positioning, including coordinate output and display for ground targets.
- Stable Target Tracking: Ensures stable tracking of static or dynamic targets, supporting manual and point-select tracking, with anti-jamming, anti-occlusion, over-the-top tracking, and decoupled tracking center from laser aiming line.
- Moving Target Detection: Detects moving ground targets with tracking assistance, accurately identifying and labeling targets for rapid tracking via assigned markers.
- Speed and Direction Measurement for Moving Targets: Provides speed and direction measurement capabilities for dynamic targets.
- Near-Infrared Filter and Laser Spot Detection: Includes a near-infrared filter and laser spot detection capability for enhanced performance.
[ 04 / DATA ]
GENERAL
SPECIFICATIONS.
Powered by an exclusive TBO certified, fuel-injected engine, Yaró 150 is designed for maximum safety and reliability along its life-cycle.
Yaró outstanding combination of endurance, payload capacity, and range, with up to 16 hours flying with a 14kg payload, with a range of 2100km. With a complex gimbal system, carrying target ranging and pointing at +20km, Yaró has a endurance of 8 hours and a range of 1120km.
- MTOW
- 150 kg
- Take-off speed
- 33 m/s
- Cruise speed
- 44 m/s
- Maximum speed
- 64 m/s
- Endurance
- < 18 hrs
- Range
- > 2,500 km
- Payload
- < 60 kg
